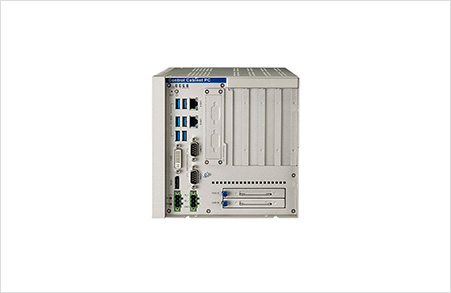

Part Number

UNO-3285G-634AE

UNO-3285G-654AE

UNO-3285G-674AE

General

Certifications

CE, UL, CCC, FCC, BSMI

CE, UL, CCC, FCC, BSMI

CE, UL, CCC, FCC, BSMI

Dimensions ( W x D x H )

182 x 238 x 177 mm (7.2" x 9.4" x 7")

182 x 238 x 177 mm (7.2" x 9.4" x 7")

182 x 238 x 177 mm (7.2" x 9.4" x 7")

Form factor

Regular Size

Regular Size

Regular Size

Mounting

Wall mount, Stand mount, Enclosure mount

Wall mount, Stand mount, Enclosure mount

Wall mount, Stand mount, Enclosure mount

Power Consumption

90W (Typical @ 24V); 120W (Max. @ 24V)

90W (Typical @ 24V); 120W (Max. @ 24V)

90W (Typical @ 24V); 120W (Max. @ 24V)

Power Requirement

10~36 VDC

10~36 VDC

10~36 VDC

Weight (Net)

4.5 kg (9.9 lbs)

4.5 kg (9.9 lbs)

4.5 kg (9.9 lbs)

OS Support

WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu

WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu

WIN7/8/10, WES7, Win10 Ent. LTSB, AdvLinuxTu

System Hardware

Expansion

2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI)

2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI)

2 x Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4 x PCI)

LED Indicators

LEDs for Power, LAN , Tx/Rx , battery and HDD

LEDs for Power, LAN , Tx/Rx , battery and HDD

LEDs for Power, LAN , Tx/Rx , battery and HDD

Storage

One mSATA slot; One CFast slot (sh) Two built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

One mSATA slot; One CFast slot (sh) Two built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

One mSATA slot; One CFast slot (sh) Two built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

Ethernet

LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az

LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az

LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az, LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az

Graphics Engine

Intel® HD Graphics

Intel® HD Graphics

Intel® HD Graphics

Processor

Intel Core™ i3-6102E 1.9GHz,

Intel Core™ i5-6442EQ 1.9GHz

Intel R Core™ i7-6822EQ 2.0GHz SkyLake-H Quad Core L2

System Chip

Intel QM170

Intel QM170

Intel QM170

Memory

Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module)

Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module)

Built-in 8GB DDR4 2133 MHz, two socket support up to 32GB (Optional ECC RAM with selected RAM module)

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 255 levels timer interval, from 1 to 255 sec

BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

I/O Interface

Power Connector

2 x 3 Pin, terminal Block to support dual power input and relay output

2 x 3 Pin, terminal Block to support dual power input and relay output

2 x 3 Pin, terminal Block to support dual power input and relay output

Audio

Mic-in, Line-In, Line-Out (Pin Header)

Mic-in, Line-In, Line-Out (Pin Header)

Mic-in, Line-In, Line-Out (Pin Header)

Displays

1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp

1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp

1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp

USB Port

6 x USB 3.0 Ports

6 x USB 3.0 Ports

6 x USB 3.0 Ports

LAN Ports

1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Serial Ports

2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header)

2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header)

2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional pin header)

Environment

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis (SSD); 1.5Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE

-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE

-20 ~ 60°C (-4 ~ 140°F) with 0.7m/s airflow environment 0~50°C (32 ~ 122°F) for UNO-3283G-6541AE

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

-40 ~ 85°C ( -40 ~ 185°F)

-40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity

10 ~ 95% @ 40°C non-condensing

10 ~ 95% @ 40°C non-condensing

10 ~ 95% @ 40°C non-condensing
