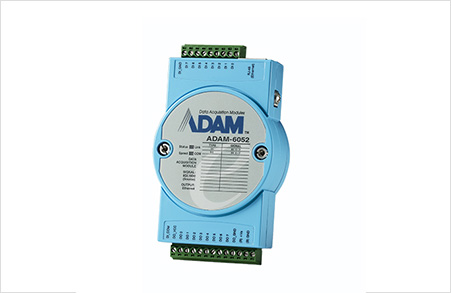

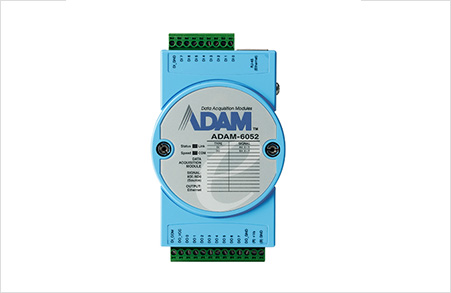

ADAM-6052
8通道
8数字输入/8数字输出
VDC:35伏
光纤隔离:2000Vrms
Specifications

Part Number

ADAM-6052-D

Display

LED Indicators

Status, Comm, Link, Speed

Power Supply

Power Requirement

10~30 VDC

Digital I/O

Frequency Input

DI counters (32-bit + 1-bit overflow, 3kHz max.)

General

Watchdog Timer

System (1.6 second) & Communication (programmable)

Temperature (Operating)

-40 ~ 70°C (-40 ~ 158°F)

Humidity

20~95 %RH

Temperature (Storage)

-40 ~ 80°C (-40 ~ 176°F)

Interface

10/100Base-T(X)

Peer-to-Peer

Yes

GCL

Yes

Isolation Protection

2000 VDC

Communication Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT

Communication Speed

Ethernet: 10/100Mbps

Comm. Distance

Ethernet: 100 m

Connector

1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)

Digital Input

Input Voltage

Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC

Channels

8

Digital Output

Channels

8 (Source type) 10~35 VDC, 1 A per ch. Support 5 kHz pulse output
